Bartop Light Kit

The Bartop Light is our most affordable bartop option for 24″ screens, built on 10mm MDF with a screw assembly system. All holes come pre-drilled from the factory and the kit includes all the screws needed for assembly, making the build process straightforward and simple.

CNC precision-cut piece by piece, it includes a VESA bracket with 75 and 100 hole patterns, fixed to both side panels via angle brackets, compatible with the vast majority of monitors on the market.

We recommend pairing it with a 24″ monitor to make the most of the screen opening.

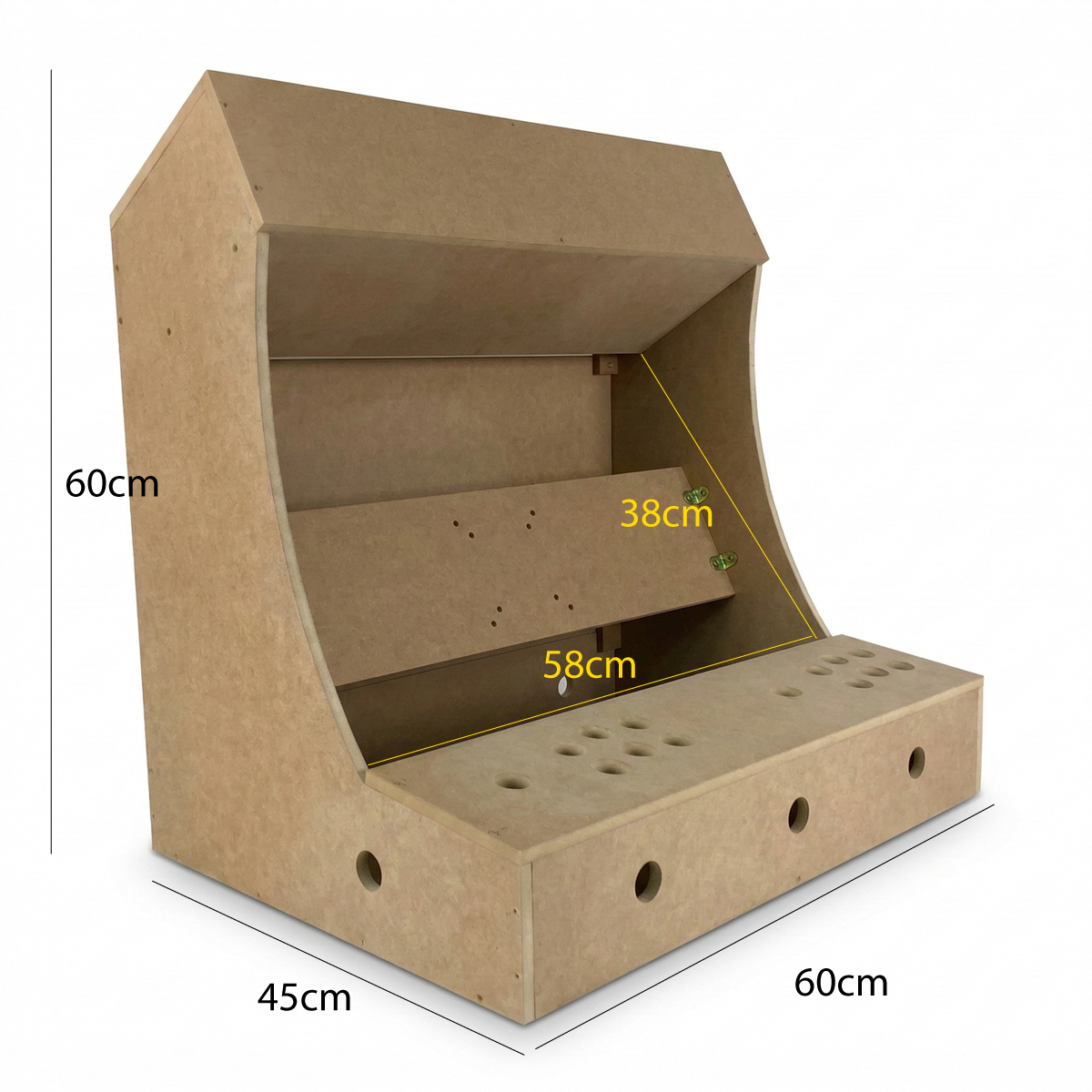

Technical specifications

Height	60 cm
Width	60 cm
Depth	45 cm
Monitor opening (W × H)	58 × 38 cm
Recommended monitor	24″
Material	10mm MDF
Assembly system	Screws (holes pre-drilled, screws included)
Monitor fixing	VESA bracket with 75 and 100 hole patterns, fixed to both side panels via angle brackets
U-molding required	2 metres of 10 mm
Manufacturing	CNC precision

Special features

Rear door fixed with screws — Access to the interior of the cabinet for installing and wiring all components. Fixed using screws to included wall plugs.

Marquee included — The Bartop Light comes with a marquee board as standard. If you opt for the marquee and screen acrylics, the board is replaced by the marquee acrylic and a support strip is also included below the CPO to anchor the screen acrylic.

Two-player control panel

Upper CPO: 1 joystick + 6 buttons per player
Front CPO: 1-1-1 layout

Customise your Bartop Light

From the product configurator you can tailor the cabinet to your preferences before adding it to the cart. Below we explain each option.

Button hole size

Choose the diameter based on the buttons you plan to install.

28 mm — American standard. Compatible with American-style buttons and Lorenzo PSL-L.
30 mm — Japanese standard. Compatible with Japanese-style buttons, Sanwa, chrome and illuminated translucent buttons.

If you already have buttons, check the diameter before choosing. Feel free to ask us if you have any doubts.

Speakers

No holes — The cabinet ships without speaker perforations.
3″ holes — Holes are drilled, no speakers included.
3″ holes with 10W speakers — Includes a pair of 5W speakers with amplifier, power supply and wiring.
3″ holes with 20W speakers — Includes a pair of 10W speakers with amplifier, power supply and wiring. More powerful sound than the 10W option.

If you select any option with holes, you can also add decorative grilles in various colours: Black, Grey, White, Gold, Silver, Chrome, Blue and Red.

Vinyl

No — The cabinet is delivered without vinyl.
Yes — You will access a selector with multiple designs available.

If you select vinyl, also choose the finish:

Matte — More resistant to fingerprints and scratches.
Gloss — More vibrant and saturated colours.

U-Molding

U-molding is the plastic edge trim applied to the board edges. It serves an aesthetic purpose and protects the cabinet edges. The Bartop Light requires 2 metres of 10mm u-molding.

No u-molding — If you already have some or prefer to source it separately.
Black / White / Blue / Red / Green / Yellow / Pink — 2 metres available in various colours.

Accessories

Socket with power switch	On/off power button integrated into the cabinet.
4-socket power strip	Distributes power to all internal components. Ready to connect to the socket with power switch.
Marquee + screen acrylics	The marquee acrylic replaces the standard marquee board. A screen acrylic and a support strip below the CPO to anchor it are also included. Allows vinyl to be applied to the marquee and screen, enabling a monitor bezel.
Upper CPO acrylic	Covers and protects the upper control panel with a transparent finish.
Lower CPO acrylic	Same for the lower control panel.
Pinball holes	One hole on each side of the cabinet in pinball style.
